๐๏ธ Visualize Loss Landscape#
In this notebook, a simplified loss landscape visualization for neural networks is implemented. The notebook will visualize the effect of using a skip connection.
Quick recap#
For a loss function \(L(\theta)\) the technique construct \(f(\alpha,\beta) = L(\theta+\alpha \delta+\beta \eta)\), where :
\(\theta\): is the optimized neural network parameters.
\(\delta, \eta\): The random direction in the parameter space.
\(\alpha, \beta\): The grid coordinates.
In essence, for a neural network parameters, the method perturb the weights in random direction with different scale on a grid, then evaluate the loss function at each grid point.
Imports#
[ ]:
!pip install git+https://github.com/ASEM000/serket --quiet
!pip install optax --quiet
!pip install tqdm --quiet
!pip install ml_collections --quiet
[1]:
import requests
from io import BytesIO
import jax
import jax.numpy as jnp
import jax.random as jr
import jax.tree_util as jtu
import functools as ft
import optax # for gradient optimization
import serket as sk
import matplotlib.pyplot as plt # for plotting the predictions
from tqdm import tqdm # for progress bar
from ml_collections import ConfigDict # for configuration
from typing import TypeVar, Generic
from typing_extensions import Annotated, Callable
T = TypeVar("T")
class Batched(Generic[T]): ...
CHWArray = Annotated[jax.Array, "CHW"]
config = ConfigDict()
config.EPOCHS = 1
config.LR = 1e-3
config.BATCH_SIZE = 128
config.seed = 0
config.optim = optax.adam
Data preparation#
[2]:
url = "https://storage.googleapis.com/tensorflow/tf-keras-datasets/mnist.npz"
data = jnp.load(BytesIO(requests.get(url).content))
x_train = data["x_train"].reshape(-1, 1, 28, 28).astype("float32") / 255.0
x_train = jnp.array_split(x_train, x_train.shape[0] // config.BATCH_SIZE)
y_train = jnp.array_split(data["y_train"], len(data["y_train"]) // config.BATCH_SIZE)
x_test = data["x_test"].reshape(-1, 1, 28, 28).astype("float32") / 255.0
y_test = data["y_test"]
[3]:

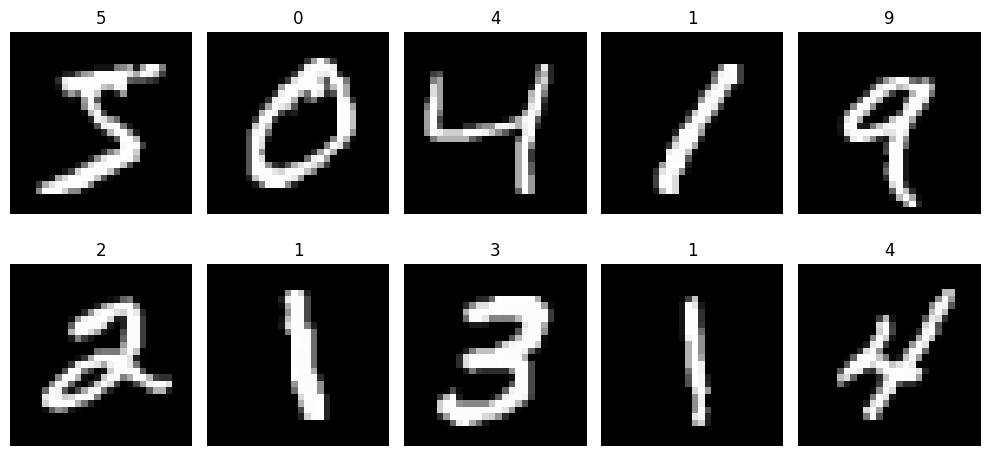

# visualize the data
fig, axes = plt.subplots(2, 5, figsize=(10, 5))
for i, ax in enumerate(axes.flat):
ax.imshow(x_train[0][i].squeeze(), cmap="gray")
ax.set_title(y_train[0][i])
ax.axis("off")
plt.tight_layout()
Model preparation#
Construct two convnets, one with skip connections and one without it.
[4]:
class ResBlock(sk.TreeClass):
def __init__(self, in_features: int, out_features: int, *, key: jax.Array):
k1, k2 = jr.split(key)
self.conv1 = sk.nn.Conv2D(in_features, out_features, 3, key=k1)
self.conv2 = sk.nn.Conv2D(out_features, out_features, 3, key=k2)
def __call__(self, input: jax.Array) -> jax.Array:
out = jax.nn.relu(self.conv1(input))
out = jax.nn.relu(self.conv2(out))
return jax.nn.relu(out + input)
class SansResBlock(sk.TreeClass):
def __init__(self, in_features: int, out_features: int, *, key: jax.Array):
k1, k2 = jr.split(key)
self.conv1 = sk.nn.Conv2D(in_features, out_features, 3, key=k1)
self.conv2 = sk.nn.Conv2D(out_features, out_features, 3, key=k2)
def __call__(self, input: jax.Array) -> jax.Array:
out = jax.nn.relu(self.conv1(input))
out = jax.nn.relu(self.conv2(out))
return out
class ResConvNet(sk.TreeClass):
def __init__(self, in_features: int, out_features: int, *, key: jax.Array):
k1, k2, k3, k4 = jr.split(key, 4)
self.conv1 = ResBlock(in_features, out_features, key=k1)
self.conv2 = ResBlock(out_features, out_features, key=k2)
self.conv3 = ResBlock(out_features, out_features, key=k3)
self.pool = sk.nn.MaxPool2D(2, 2)
self.final = sk.nn.Conv2D(out_features, 10, 1, key=k4)
def __call__(self, input: jax.Array) -> jax.Array:
out = self.conv1(input)
out = self.pool(out)
out = self.conv2(out)
out = self.pool(out)
out = self.conv3(out)
out = self.pool(out)
out = self.final(out)
out = jnp.mean(out, axis=(1, 2))
return out
class SansConvNet(sk.TreeClass):
def __init__(self, in_features: int, out_features: int, *, key: jax.Array):
k1, k2, k3, k4 = jr.split(key, 4)
self.conv1 = SansResBlock(in_features, out_features, key=k1)
self.conv2 = SansResBlock(out_features, out_features, key=k2)
self.conv3 = SansResBlock(out_features, out_features, key=k3)
self.pool = sk.nn.MaxPool2D(2, 2)
self.final = sk.nn.Conv2D(out_features, 10, 1, key=k4)
def __call__(self, input: jax.Array) -> jax.Array:
out = self.conv1(input)
out = self.pool(out)
out = self.conv2(out)
out = self.pool(out)
out = self.conv3(out)
out = self.pool(out)
out = self.final(out)
out = jnp.mean(out, axis=(1, 2))
return out
Train on MNIST#
[5]:
def softmax_cross_entropy(logits, onehot):
assert onehot.shape == logits.shape == (10,)
return -jnp.sum(jax.nn.log_softmax(logits) * onehot)
def accuracy_func(logits, y):
assert logits.shape == (10,)
return jnp.argmax(logits) == y
def train(net, config: ConfigDict):
# visualize the network
print(sk.tree_summary(net, depth=1))
net = sk.tree_mask(net)
optim = config.optim(config.LR)
optim_state = optim.init(net)
def loss_func(net, x, y):
logits = jax.vmap(sk.tree_unmask(net))(x)
onehot = jax.nn.one_hot(y, 10)
loss = jnp.mean(jax.vmap(softmax_cross_entropy)(logits, onehot))
metric = jnp.mean(jax.vmap(accuracy_func)(logits, y))
return loss, (loss, metric)
@jax.jit
def train_step(net, optim_state, x, y):
grads, (loss, metric) = jax.grad(loss_func, has_aux=True)(net, x, y)
updates, optim_state = optim.update(grads, optim_state)
net = optax.apply_updates(net, updates)
return net, optim_state, (loss, metric)
for i in (pbar := tqdm(range(1, config.EPOCHS + 1))):
epoch_loss = []
epoch_accuracy = []
for j, (xb, yb) in enumerate(zip(x_train, y_train)):
net, optim_state, (loss, accuracy) = train_step(net, optim_state, xb, yb)
desc = [f"Epoch: {i:003d}/{config.EPOCHS:003d}"]
desc += [f"Batch: {j:003d}/{len(x_train):003d}"]
desc += [f"loss: {loss:3e}\taccuracy: {accuracy:3f}"]
pbar.set_description("\t".join(desc))
epoch_loss.append(loss)
epoch_accuracy.append(accuracy)
desc = [f"Epoch: {i:003d}/{config.EPOCHS:003d}"]
desc += [f"loss: {jnp.mean(jnp.stack(epoch_loss)):3e}"]
desc += [f"accuracy: {jnp.mean(jnp.stack(epoch_accuracy)):3f}"]
pbar.set_description("\t".join(desc))
return sk.tree_unmask(net)
[6]:
# train with and without skip connections
key = jr.key(config.seed)
res_net = ResConvNet(1, 32, key=key)
sans_net = SansConvNet(1, 32, key=key)
res_net = train(res_net, config)
sans_net = train(sans_net, config)
โโโโโโโโฌโโโโโโโโโโโโโโโโโโฌโโโโโโโฌโโโโโโโโโ
โName โType โCount โSize โ
โโโโโโโโผโโโโโโโโโโโโโโโโโโผโโโโโโโผโโโโโโโโโค
โ.conv1โResBlock โ9,592 โ37.38KB โ
โโโโโโโโผโโโโโโโโโโโโโโโโโโผโโโโโโโผโโโโโโโโโค
โ.conv2โResBlock โ18,520โ72.25KB โ
โโโโโโโโผโโโโโโโโโโโโโโโโโโผโโโโโโโผโโโโโโโโโค
โ.conv3โResBlock โ18,520โ72.25KB โ
โโโโโโโโผโโโโโโโโโโโโโโโโโโผโโโโโโโผโโโโโโโโโค
โ.pool โMaxPool2D โ5 โ โ
โโโโโโโโผโโโโโโโโโโโโโโโโโโผโโโโโโโผโโโโโโโโโค
โ.finalโConv2D[32,10,1x1]โ342 โ1.29KB โ
โโโโโโโโผโโโโโโโโโโโโโโโโโโผโโโโโโโผโโโโโโโโโค
โฮฃ โResConvNet โ46,979โ183.16KBโ
โโโโโโโโดโโโโโโโโโโโโโโโโโโดโโโโโโโดโโโโโโโโโ
Epoch: 001/001 loss: 6.124917e-01 accuracy: 0.806603: 100%|โโโโโโโโโโ| 1/1 [00:59<00:00, 59.65s/it]
โโโโโโโโฌโโโโโโโโโโโโโโโโโโฌโโโโโโโฌโโโโโโโโโ
โName โType โCount โSize โ
โโโโโโโโผโโโโโโโโโโโโโโโโโโผโโโโโโโผโโโโโโโโโค
โ.conv1โSansResBlock โ9,592 โ37.38KB โ
โโโโโโโโผโโโโโโโโโโโโโโโโโโผโโโโโโโผโโโโโโโโโค
โ.conv2โSansResBlock โ18,520โ72.25KB โ
โโโโโโโโผโโโโโโโโโโโโโโโโโโผโโโโโโโผโโโโโโโโโค
โ.conv3โSansResBlock โ18,520โ72.25KB โ
โโโโโโโโผโโโโโโโโโโโโโโโโโโผโโโโโโโผโโโโโโโโโค
โ.pool โMaxPool2D โ5 โ โ
โโโโโโโโผโโโโโโโโโโโโโโโโโโผโโโโโโโผโโโโโโโโโค
โ.finalโConv2D[32,10,1x1]โ342 โ1.29KB โ
โโโโโโโโผโโโโโโโโโโโโโโโโโโผโโโโโโโผโโโโโโโโโค
โฮฃ โSansConvNet โ46,979โ183.16KBโ
โโโโโโโโดโโโโโโโโโโโโโโโโโโดโโโโโโโดโโโโโโโโโ
Epoch: 001/001 loss: 8.296877e-01 accuracy: 0.716814: 100%|โโโโโโโโโโ| 1/1 [01:06<00:00, 66.24s/it]
Loss landscape utils#
[7]:
def tree_filter_norm(tree: T, dir: T):
"""Rescale direction of Conv2D to have same norm as the input."""
@jax.vmap
def normalize_array(input, dir):
eps = jnp.finfo(input.dtype).eps
return dir * (jnp.linalg.norm(input) / (jnp.linalg.norm(dir) + eps))
def normalize_direction(input: jax.Array, dir: jax.Array):
"""Rescale direction to have same norm as the input."""
return normalize_array(input, dir) if isinstance(input, jax.Array) else input
return jax.tree_map(normalize_direction, tree, dir)
def loss_landscape_2d(
loss_func: Callable,
*,
key: jax.Array,
min: float = -1.0,
max: float = 1.0,
num: int = 100,
):
"""Returns a function that computes the loss landscape of a given loss function
Args:
loss_func: the loss function to compute the landscape for.
key: the random key to use for sampling the directions.
min: the minimum value of the landscape used in the meshgrid.
max: the maximum value of the landscape used in the meshgrid.
num: the number of points in the linspace used in the meshgrid.
Returns:
A function that computes the loss landscape of the given loss function.
the modfied loss function takes the same arguments as the original loss
function and returns a tuple of (X, Y, LOSS) where X and Y are the
coordinates of the meshgrid and LOSS is the loss landscape.
Reference:
- https://arxiv.org/pdf/1712.09913.pdf
- https://github.com/tomgoldstein/loss-landscape
"""
linspace = jnp.linspace(min, max, num)
X, Y = jnp.meshgrid(linspace, linspace, indexing="ij")
x = jnp.reshape(X, (-1, 1))
y = jnp.reshape(Y, (-1, 1))
def generate_direction(key: jax.Array, tree) -> tuple[jax.Array, jax.Array]:
def func(leaf, key):
if isinstance(leaf, jax.Array):
return (
# dont perturb the bias
jnp.zeros_like(leaf)
if leaf.ndim <= 1
else jr.normal(key, leaf.shape)
)
return leaf
leaves, treedef = jax.tree_util.tree_flatten(tree)
keys = jr.split(key, len(leaves))
return jtu.tree_unflatten(treedef, [func(L, K) for L, K in zip(leaves, keys)])
def wrapper(tree: T, *args, **kwargs):
dir1, dir2 = generate_direction(key, (tree, tree))
dir1, dir2 = tree_filter_norm((tree, tree), (dir1, dir2))
def tree_perturb(scale1: float, scale2: float):
def scale(leaf, dir1, dir2):
return leaf + (scale1 * dir1) + (scale2 * dir2)
out = jax.tree_map(scale, tree, dir1, dir2)
return loss_func(out, *args, **kwargs)
LOSS = jax.vmap(tree_perturb)(x, y).reshape(X.shape)
return X, Y, LOSS
return wrapper
Visualize loss landscape#
[8]:
@jax.jit
def loss_func(net, inputs: Batched[CHWArray], labels: Batched[int]):
logits = jax.vmap(sk.tree_unmask(net))(inputs)
onehot = jax.nn.one_hot(labels, 10)
loss = jnp.mean(jax.vmap(softmax_cross_entropy)(logits, onehot))
return loss
[9]:
key = jr.key(1)
x_sample = x_test[:10]
y_sample = y_test[:10]
# 20x20 grid in [-1, 1] x [-1, 1]
visualize = loss_landscape_2d(loss_func, key=key, min=-1, max=1, num=20)
X, Y, LOSS_RES = visualize(sk.tree_mask(res_net), x_sample, y_sample)
X, Y, LOSS_SANS = visualize(sk.tree_mask(sans_net), x_sample, y_sample)

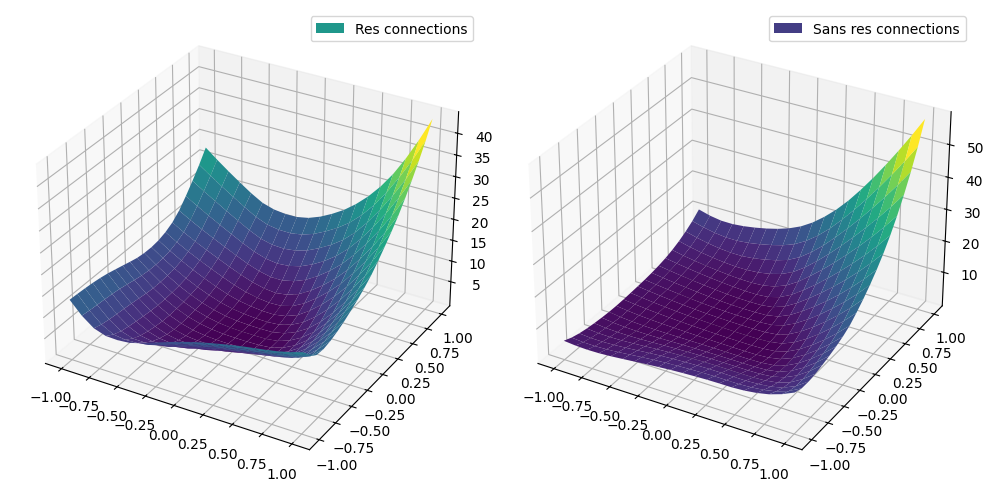

# visualize the loss landscape
fig = plt.figure(figsize=(10, 5))
ax1 = fig.add_subplot(1, 2, 1, projection="3d")
ax2 = fig.add_subplot(1, 2, 2, projection="3d")
ax1.plot_surface(X, Y, LOSS_RES, cmap="viridis", label="Res connections")
ax2.plot_surface(X, Y, LOSS_SANS, cmap="viridis", label="Sans res connections")
ax1.legend()
ax2.legend()
plt.tight_layout()
