🌀 Augmentations composition

serket comes with number of layers under the image subpackage to augment images. In this guide, a simple demonstration of composable augmentations is shown. Specifically, jax.vmap will be used to contstruct:

• One-to-many augmentations.

• Many-to-one augmentations.

!pip install git+https://github.com/ASEM000/serket --quiet

Imports

import serket as sk
import imageio
import jax
import jax.numpy as jnp
import jax.random as jr
from itertools import product
from matplotlib import pyplot as plt

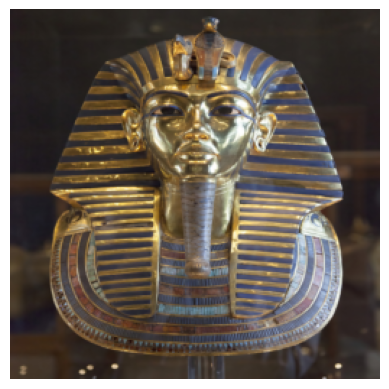

url = "https://upload.wikimedia.org/wikipedia/commons/2/27/CairoEgMuseumTaaMaskMostlyPhotographed.jpg"

to_channel_last = lambda x: x.transpose(1, 2, 0)

tut = imageio.v2.imread(url).astype(jnp.float32) / 255.0
tut = tut.transpose(2, 0, 1)  # [H, W, C] -> [C, H, W]
tut = jax.image.resize(tut, shape=(3, 256, 256), method="bilinear")

plt.imshow(to_channel_last(tut))
plt.axis("off")

(-0.5, 255.5, 255.5, -0.5)

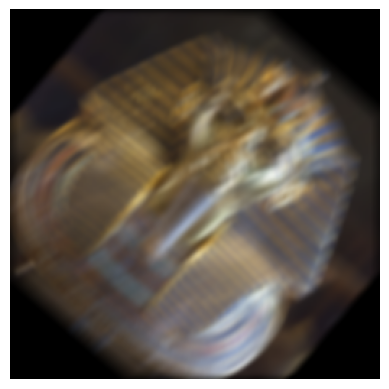

Augmentation composition

net = sk.Sequential(
    # lets start with random flips
    sk.image.RandomHorizontalFlip2D(rate=0.5),
    sk.image.RandomVerticalFlip2D(rate=0.5),
    # then random rotations between -45 and 45 degrees
    sk.image.RandomRotate2D((-45, 45)),
    # then random shearing between -30 and 30 degrees
    sk.image.RandomVerticalShear2D((-30, 30)),
    # lets add some blur with a 50% chance
    sk.image.GaussianBlur2D(kernel_size=5, sigma=(0.1, 2.0)),
    # and some motion blur, lets use FFT for large kernels
    sk.image.FFTMotionBlur2D(kernel_size=15, angle=30),
)

tut_aug = net(tut, key=jr.key(0))
tut_aug = (tut_aug * 255).astype(jnp.uint8)
plt.imshow(to_channel_last(tut_aug))
plt.axis("off")

(-0.5, 255.5, 255.5, -0.5)

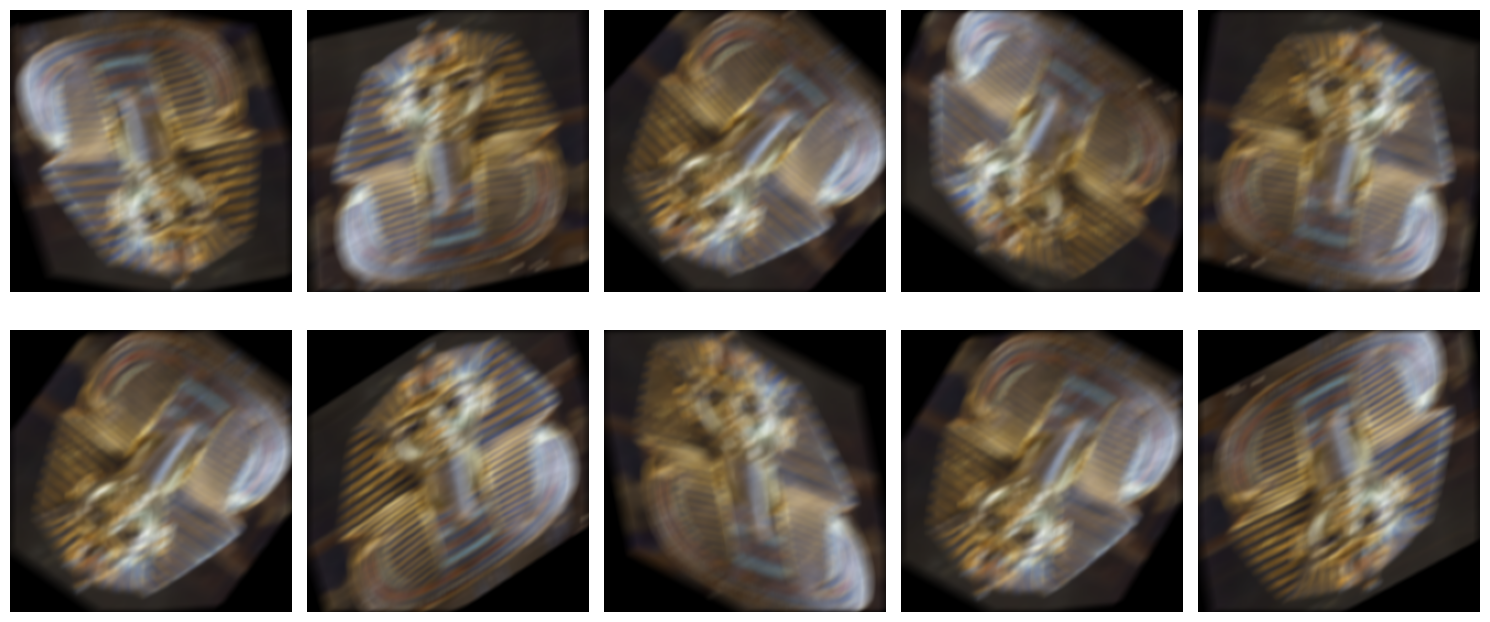

One-to-many augmentations

Using jax.vmap, one-to-many augmentations can be made by vectorizing over the RNG key. The following code demonstrate this.

# lets create 10 different augmented images from the same image
keys = jr.split(jr.key(1), 10)
tut_augs = jax.vmap(lambda key: net(tut, key=key))(keys)
tut_augs = (tut_augs * 255).astype(jnp.uint8)

fig, axes = plt.subplots(2, 5, figsize=(15, 7))

for i, ax in enumerate(axes.flat):
    ax.imshow(to_channel_last(tut_augs[i]))
    ax.axis("off")
plt.tight_layout()

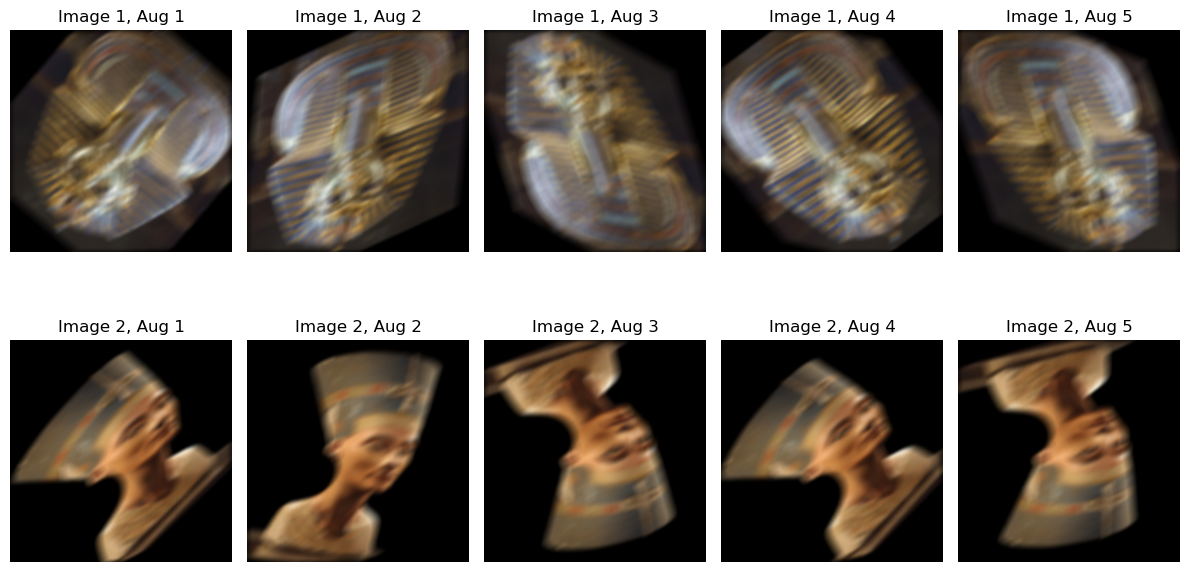

Many-to-many augmentation

In case augmentation is done on multiple images,then jax.vmap is used to vectorize over images and keys to create unique augmentation for each image.

In this example for each image 5 augmentation is done.

# load first image
url = "https://upload.wikimedia.org/wikipedia/commons/2/27/CairoEgMuseumTaaMaskMostlyPhotographed.jpg"
tut = imageio.v2.imread(url).astype(jnp.float32) / 255.0
tut = tut.transpose(2, 0, 1)  # [H, W, C] -> [C, H, W]
tut = jax.image.resize(tut, shape=(3, 256, 256), method="bilinear")

# load second image
url = "https://upload.wikimedia.org/wikipedia/commons/1/1f/Nofretete_Neues_Museum.jpg"
nef = imageio.v2.imread(url).astype(jnp.float32) / 255.0
nef = nef.transpose(2, 0, 1)  # [H, W, C] -> [C, H, W]
nef = jax.image.resize(nef, shape=(3, 256, 256), method="bilinear")

# lets create a batch of the two images
batch = jnp.stack([tut, nef], axis=0)

# create a key for each image in the batch
keys = jr.split(jr.key(1), len(batch))


@jax.jit
@jax.vmap
def many_to_many(image, key):
    # for each image in the batch, create 5 augmented images
    @jax.vmap
    def one_to_many_augmentation(key):
        return net(image, key=key)

    return one_to_many_augmentation(jr.split(key, 5))

fig, axes = plt.subplots(2, 5, figsize=(12, 7))
tut_neg_augs = many_to_many(batch, keys)
for i, j in product(range(2), range(5)):
    axes[i, j].imshow(to_channel_last((tut_neg_augs[i, j]) * 255).astype(jnp.uint8))
    axes[i, j].axis("off")
    axes[i, j].set_title(f"Image {i+1}, Aug {j+1}")

plt.tight_layout()
