๐ Data and model parallelism#
In this guide, jax machinery for array sharding is used to achieve model and data parallelism.
Reference: jax docs
Imports#
[1]:
!pip install git+https://github.com/ASEM000/serket --quiet
!pip install optax --quiet
!pip install ml_collections --quiet
!pip install tqdm --quiet
[1]:
import os
# config XLA to show 8 devices
os.environ["XLA_FLAGS"] = "--xla_force_host_platform_device_count=8"
import serket as sk
import jax
from jax.experimental import mesh_utils
import jax.numpy as jnp
import jax.random as jr
import jax.sharding as js
import matplotlib.pyplot as plt
import functools as ft
import optax
from ml_collections import ConfigDict
from tqdm.notebook import tqdm
Devices and mesh setup#
[2]:
devices = mesh_utils.create_device_mesh((8))
mesh = js.Mesh(devices.reshape(4, 2), axis_names=("model", "data"))

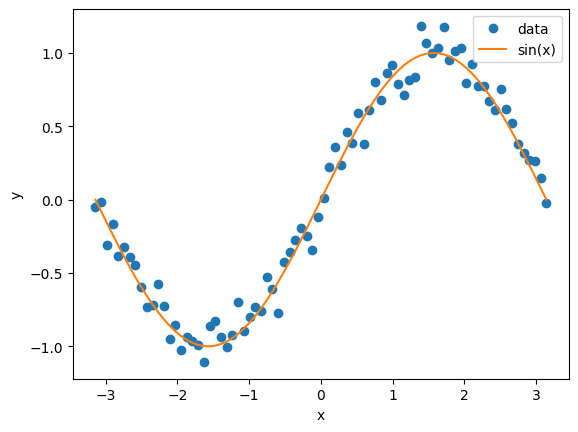

Data#
[3]:
x = jnp.linspace(-jnp.pi, jnp.pi, 8 * 10).reshape(-1, 1)
y = jnp.sin(x) + jr.normal(jr.key(0), shape=x.shape) * 0.1
plt.plot(x, y, "o", label="data")
plt.plot(x, jnp.sin(x), label="sin(x)")
plt.xlabel("x")
plt.ylabel("y")
plt.legend()
[3]:
<matplotlib.legend.Legend at 0x2921ae850>
Define model and optimizer state#
[4]:
class Net(sk.TreeClass):
def __init__(self, *, key: jax.Array):
k1, k2, k3 = jr.split(key, 3)
self.l1 = sk.nn.Linear(1, 32, key=k1)
self.l2 = sk.nn.Linear(32, 8, key=k2)
self.l3 = sk.nn.Linear(8, 1, key=k3)
def __call__(self, x):
x = jax.nn.tanh(self.l1(x))
x = jax.nn.tanh(self.l2(x))
x = self.l3(x)
return x
net = sk.tree_mask(Net(key=jr.key(0)))
print(sk.tree_summary(net))
โโโโโโโโโโโโฌโโโโโโโโโโฌโโโโโโฌโโโโโโโโ
โName โType โCountโSize โ
โโโโโโโโโโโโผโโโโโโโโโโผโโโโโโผโโโโโโโโค
โ.l1.weightโf32[32,1]โ32 โ128.00Bโ
โโโโโโโโโโโโผโโโโโโโโโโผโโโโโโผโโโโโโโโค
โ.l1.bias โf32[32] โ32 โ128.00Bโ
โโโโโโโโโโโโผโโโโโโโโโโผโโโโโโผโโโโโโโโค
โ.l2.weightโf32[8,32]โ256 โ1.00KB โ
โโโโโโโโโโโโผโโโโโโโโโโผโโโโโโผโโโโโโโโค
โ.l2.bias โf32[8] โ8 โ32.00B โ
โโโโโโโโโโโโผโโโโโโโโโโผโโโโโโผโโโโโโโโค
โ.l3.weightโf32[1,8] โ8 โ32.00B โ
โโโโโโโโโโโโผโโโโโโโโโโผโโโโโโผโโโโโโโโค
โ.l3.bias โf32[1] โ1 โ4.00B โ
โโโโโโโโโโโโผโโโโโโโโโโผโโโโโโผโโโโโโโโค
โฮฃ โNet โ337 โ1.32KB โ
โโโโโโโโโโโโดโโโโโโโโโโดโโโโโโดโโโโโโโโ
Model parallelism#
The idea here is to construct a NamedSharding object for model parallelism with max divisble axis choosen to shard.
[5]:
def model_shard(mesh, leaf):
# shard the largest dimension divisible by number of devices for model axis
spec = [None] * len(leaf.shape)
max_index_size = (None, 0)
model_devices = mesh.shape["model"]
for index, size in enumerate(leaf.shape):
if size % model_devices == 0:
max_index_size = max(max_index_size, (index, size), key=lambda x: x[1])
index, _ = max_index_size
if index is None:
# if no dimension is divisible by model devices
return js.NamedSharding(mesh, js.PartitionSpec())
spec[max_index_size[0]] = "model"
return js.NamedSharding(mesh, js.PartitionSpec(*spec))
net_sharding = jax.tree_map(ft.partial(model_shard, mesh), net)
sample_net = jax.device_put(net, net_sharding)
def viz_sharding_with_path(path, leaf):
if isinstance(leaf, jax.Array):
print(jax.tree_util.keystr(path))
jax.debug.visualize_array_sharding(leaf)
# visualize the sharding of the network
jax.tree_util.tree_map_with_path(viz_sharding_with_path, sample_net)
.l1.weight
CPU 0,1 CPU 2,3 CPU 4,5 CPU 6,7
.l1.bias
CPU 0,1 CPU 2,3 CPU 4,5 CPU 6,7
.l2.weight
Cโฆ Cโฆ Cโฆ Cโฆ 0โฆ 2โฆ 4โฆ 6โฆ
.l2.bias
CPU 0,1 CPU 2,3 CPU 4,5 CPU 6,7
.l3.weight
.l3.bias
CPU 0,1,2,3,4,5,6,7
[5]:
Net(
l1=Linear(
in_features=(#1),
out_features=#32,
in_axis=(#-1),
out_axis=#-1,
weight_init=#glorot_uniform,
bias_init=#zeros,
weight=None,
bias=None
),
l2=Linear(
in_features=(#32),
out_features=#8,
in_axis=(#-1),
out_axis=#-1,
weight_init=#glorot_uniform,
bias_init=#zeros,
weight=None,
bias=None
),
l3=Linear(
in_features=(#8),
out_features=#1,
in_axis=(#-1),
out_axis=#-1,
weight_init=#glorot_uniform,
bias_init=#zeros,
weight=None,
bias=None
)
)
Data parallelism#
[6]:
# shard along the leading dimension
data_shrding = js.NamedSharding(mesh, js.PartitionSpec("data"))
x_shard = jax.device_put(x, data_shrding)
y_shard = jax.device_put(y, data_shrding)
# [80,1] -(2 devices)-> [40,1],[40,1]
jax.debug.visualize_array_sharding(x_shard)
print(f"unsharded shape =\t{x_shard.shape}")
print(f"sharded shape =\t\t{x_shard.sharding.shard_shape(x_shard.shape)}")
CPU 0,2,4,6 CPU 1,3,5,7
unsharded shape = (80, 1)
sharded shape = (40, 1)
Train#
Putting it all together
[7]:
config = ConfigDict()
config.sharding = ConfigDict()
config.sharding.data_size = 2
config.sharding.model_size = 4
config.optim = ConfigDict()
config.optim.learning_rate = 1e-3
config.epochs = 1_000
config.net = None
config.key = jr.key(0)
config.optim.optim_state = None
def mse(x, y):
assert x.shape == y.shape, f"{x.shape} != {y.shape}"
return jnp.mean((x - y) ** 2)
def loss_func(net, x, y):
return mse(sk.tree_unmask(net)(x), y)
def train(config: ConfigDict, inputs: jax.Array, targets: jax.Array) -> Net:
optim = optax.adam(config.optim.learning_rate)
if config.net is None:
net = sk.tree_mask(Net(key=config.key))
if config.optim.optim_state is None:
optim_state = optim.init(net)
devices = mesh_utils.create_device_mesh((8))
devices = devices.reshape(config.sharding.model_size, config.sharding.data_size)
mesh = js.Mesh(devices, axis_names=("model", "data"))
# data parallelism
data_sharding = js.NamedSharding(mesh, js.PartitionSpec("data"))
inputs = jax.device_put(inputs, data_sharding)
targets = jax.device_put(targets, data_sharding)
# model parallelism
net_sharding = jax.tree_map(ft.partial(model_shard, mesh), net)
net = jax.device_put(net, net_sharding)
optim_state_sharding = jax.tree_map(ft.partial(model_shard, mesh), optim_state)
optim_state = jax.device_put(optim_state, optim_state_sharding)
@jax.jit
def train_step(net: Net, optim_state):
loss, grads = jax.value_and_grad(loss_func)(net, inputs, targets)
grads = jax.lax.with_sharding_constraint(grads, net_sharding)
updates, optim_state = optim.update(grads, optim_state)
net = optax.apply_updates(net, updates)
return net, optim_state, loss
for _ in (pbar := tqdm(range(1, 1_000 + 1))):
net, optim_state, loss = train_step(net, optim_state)
pbar.set_description(f"loss = {loss:.3e}")
return sk.tree_unmask(net)
net = train(config, x, y)

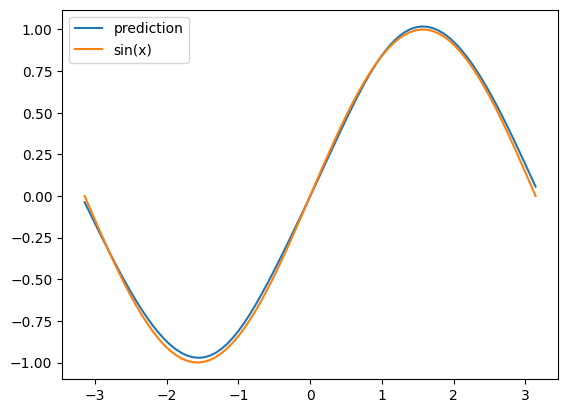

Visualize results#
[8]:
plt.plot(x, net(x), label="prediction")
plt.plot(x, jnp.sin(x), label="sin(x)")
plt.legend()
[8]:
<matplotlib.legend.Legend at 0x292540650>
